Audi R8 Gen 2 4S Wheel Spacers Kit 5x112 by Bimecc (2015+)

Machined Aluminium Spacers with black zinc coating added for durability and styling. Fit for all Audi R8 4S Gen II models.

Lightweight, durable and designed these set the stance on the car perfectly with improvement in performance handling and looks. Bimecc Spacers are an essential to any car build and look great when combined with Lowering Springs.

-

Width Set Up Guides for the Vehicle:

OEM +
12mm Front
15mm Rear

Aggressive
15mm Front
15mm Rear

-

This Bimecc Wheel Spacer Kit comes with all 4 spacers and the bolts to fit; if you don't opt for Locking Wheel Bolts you will receive 20x Extended Black Bolts only.

If you do opt for the Locking Wheel Bolts, you will receive 16x Extended Black Bolts and 4x Locking Wheel Bolts and 1x Locking Wheel Key.

Sold in set of 4 spacers. Pick your desired sizes.
Spaces come in 3 sizes: 12mm, 15mm and 20mm.

NOTE: After installing wheel spacers, there’s a small possibility of rubbing on the car’s arch, especially if you choose an aggressive fitment and the vehicle is lowered. This can usually be avoided by selecting a conservative spacer size or making minor adjustments to the fender.

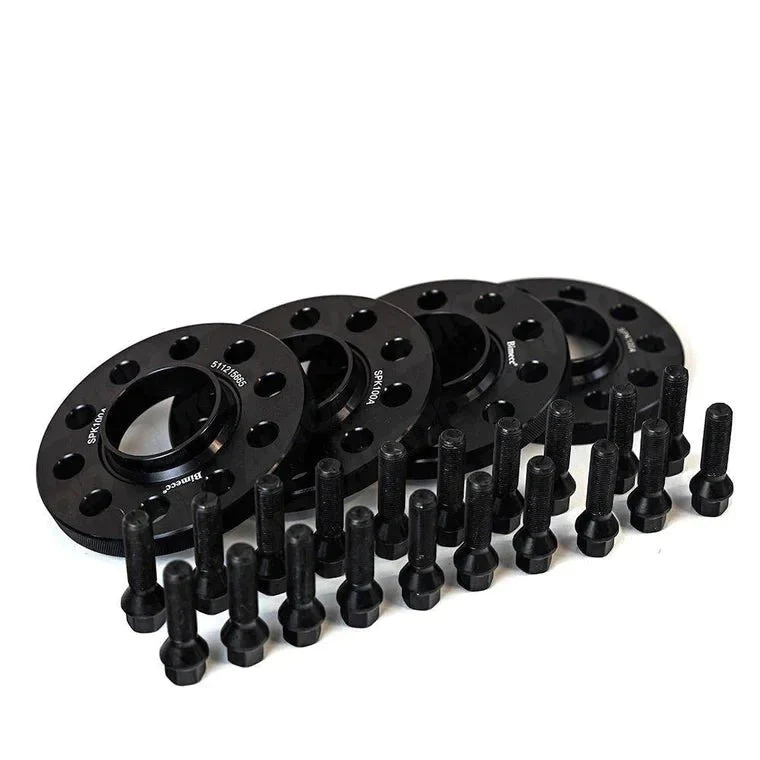

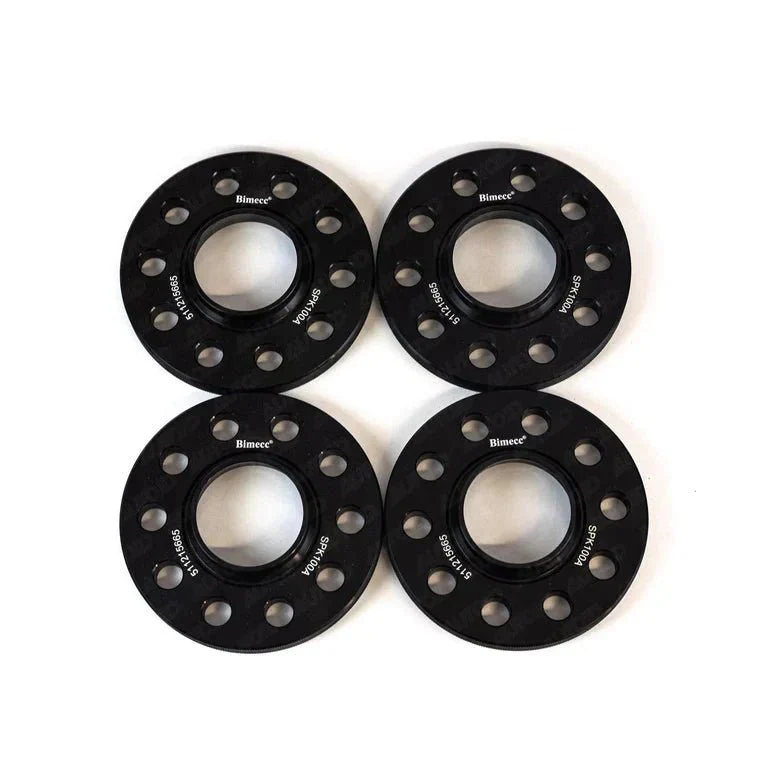

• 4 x Hub-centric Wheel Spacers

• 16 or 20 x Extended Black wheel bolts (depending on locking bolts option)
• 4 x Locking Wheel Bolts (optional)
• 1 x Locking Key (optional)

Specification

• 5x112 PCD

• 57.1 Front Axle Centre Bore

• 66.6 Rear Axle Centre Bore
• TÜV Approved

• 5 sizes available; 10mm, 12mm, 15mm & 20mm

• Bolts: 60-Deg Taper M14 x 1.50

TUV Certification

Bimecc products are produced under the certification of TUV ISO 9001 & TUV IATF 1969.

The wheel spacers are not TUV certified by vehicle application as required by law in some European states when modifying from standard.

Click here

Compatible models

• Audi R8 Gen 2 (2015-2019, 4S)
• Audi R8 Gen 2 Facelift (2019+, 4S)
